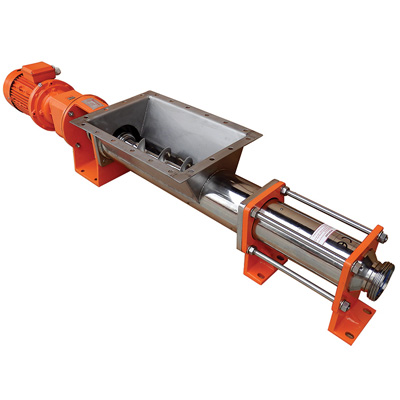

ATLAS W45-1B

For delivery rates up to 13 m3/h

Technical data



Construction Material :

Body: AISI316 / AISI304

Rotors: AISI316 / AISI304

Stators: NBR , EPDM , HYPALON , VITON

Ports: DN 80 DIN 11851 X Hopper
Seal: SIC/SIC/Viton or EPDM
Flow rate : max.13 m3/h
Maximum head : 6 Bar
Max operating Temperature :  100 °C

They are used for the transfer of:

  • High viscous liquids, even paste-like
  • Liquids with solid suspensions without damage
  • Liquids that require gentle handling
