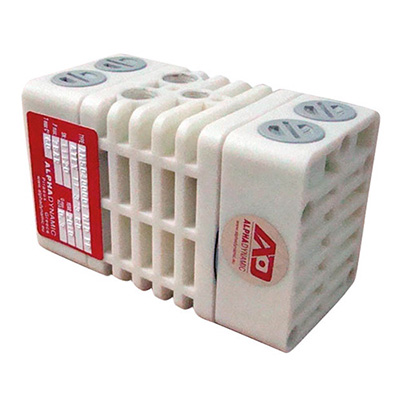

MINIPUMP 005 – 1/4”
For delivery rates up to 5 l/min
![RubyPumpLOGO-black-fin-min (1) RubyPumpLOGO-black-fin-min (1)](https://alphadynamic.eu/wp-content/uploads/2018/10/RubyPumpLOGO-black-fin-min-1-380x74.png)
![new iso](https://alphadynamic.eu/wp-content/uploads/2022/11/new-iso-300x124.jpg)
Technical data
Atex Certification : | STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc
CONDUCT : II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb |
Construction Material : | PP , PP+CF |
Intake/delivery connections : | G 1/4” |
Air connection : | 1/8” |
Max. flow rate : | 5 L/min |
Max. flow pressure : | 7 bar |
Operating pressure : | Min. 2 bar – Max. 7 bar |
Max. suction head : | 3 m |
Max. size of solids : | 0,5 mm |
Max. operating Temperature : | 60⁰C |
Weight : | 0,5 Kg |
